belt support together with the frame
green color pvc belt with different width
plastic lights match with the tables
side table as operations for the worker
shelf for place different hooks
Aluminum alloy frame and pvc cover for the display board
select the other components for the assembly production conveyor belt line
all of conveyor line size based on clients real workshop or factory size
|Conveyor Length||1000-1200mm, depending on your project design|
|Conveyor Width||200-1200mm, for smaller width, we recommend use chain conveyor|
|Conveyor Height||Adjustable. Wheels and brake are available|
|Frame material||Stainless steel/ Carbon steel with coating/ Aluminum|
|Belt material||PVC PU TPU food-grade belt|
|Other belts||PVC/PU/Mesh belt/ Plastic chain/Stainless chain all available depending on the products that transfer|
|Motor||Italy brand/SEW/China brand|
|Certificate of equipment||SGS/FDA|
|Certificate of original||FORM E/F/P/A/L/M|

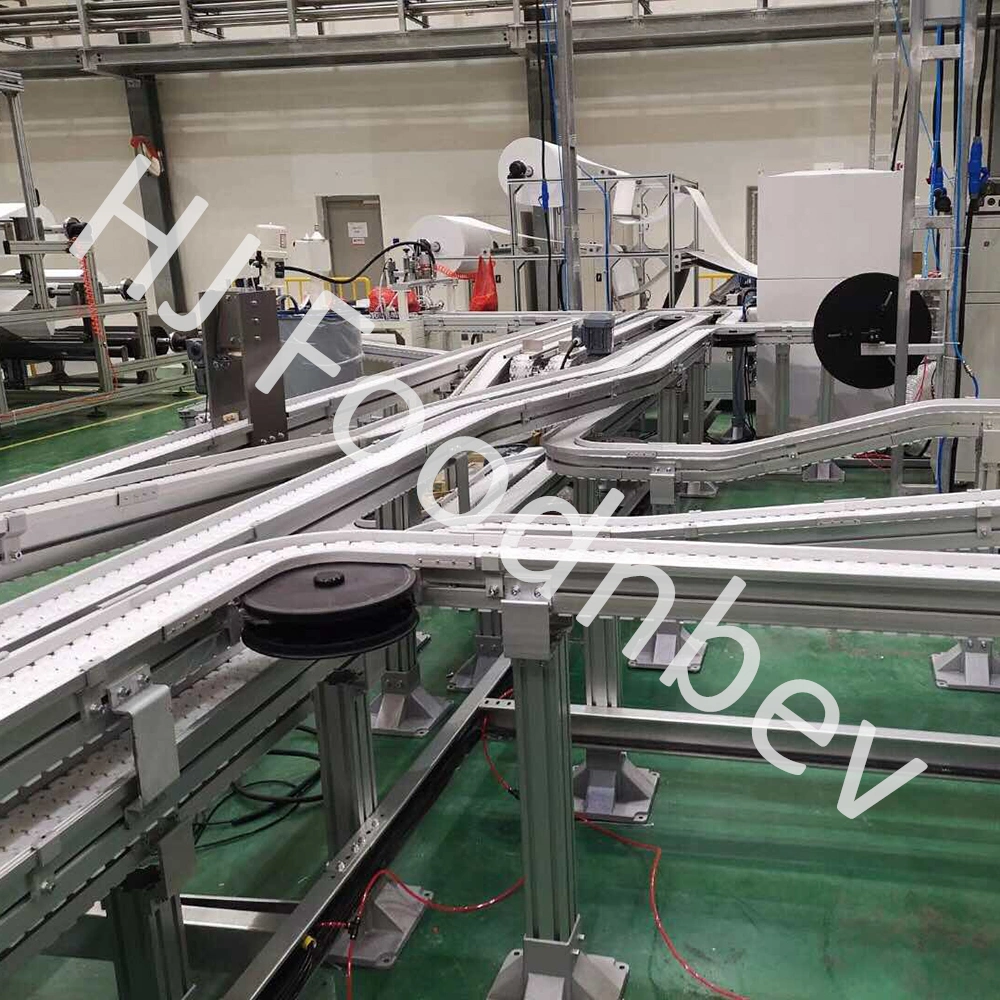

Related pictures of the conveyor system
Shanghai HJ Foodnbev Machinery forces to produce all kinds of conveyor systems depending on customer needs.
And all types of conveyor spare parts like the modular belt, top chain, the conveyor connection parts.
Roller conveyor configuration list:
|Roller||Different diameter and length according to your project requirement.|
|Frame structure||Waterproof SS 304 material frame with SS304 bearing( choose this kind frame and bearing when the goods that transfer with water). Stainless steel frame widely uses in food and beverage industry products transfer.|
Frame bending without any slot at the backside. It can improve the lifetime of the conveyor.
Filler strip with stainless steel under the belt to protect the modular belt runs smoothly. And support the belt running under high load capacity with high speed. It also can reduce the friction coefficient between the modular belt and conveyor frame.
|Support leg||Use bow shape to make the conveyor more stable. Also can choose tripod stand|
|Power system||High-quality motor with electrical control cabinet|
|Can achieve functions such as lane separation, sorting, screening, classification, etc. according to your need|
|Conveyor design||We can fabricate according to your drawing. Also, we have a big design team that can make design for your according to your factory layout. We especially good at whole plant transportation design|
|Delivery time||15 workdays|

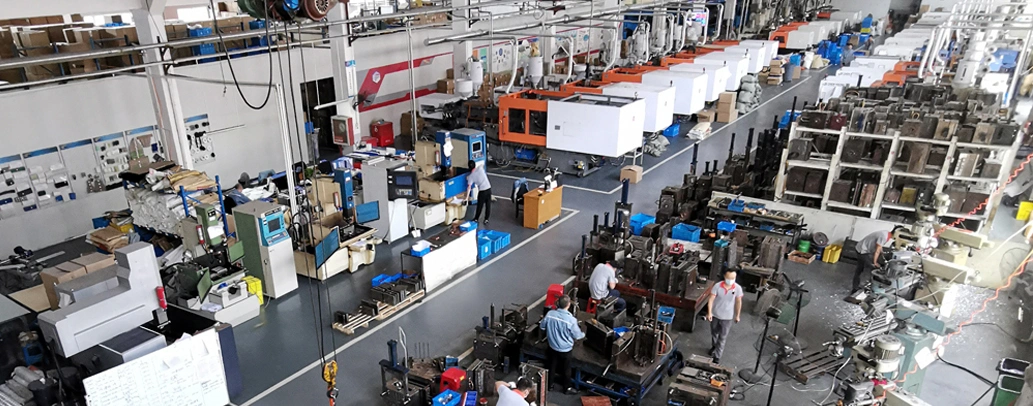

Shanghai HJ Factory and Office overview
Related products produced by Shanghai HJ Foodnbev Machinery Co.,ltd
|Conveyor system||All kinds of the automatic conveyor system|
|Modular belt||All kinds of modular belt, FT/FG/RIB/ROLLER TOP series|
|Plastic chain||Plastic top chain, Flexible chain, Stainless steel chain|
|Industry belt||PVC/PU belt, TPU belt, timing belt|
|Conveyor roller||Stainless steel roller, PVC roller|
|Other conveyor spare parts||Guard rails, Wear strips, Foot basis, Bearing, Connection parts|
Shanghai H.J FoodnBev Machinery Co., Ltd focuses on providing our customers with reliable,
easy-to-use conveyor systems and related parts that meet their needs.
With our own factory which located in Shanghai, HJ products are exported to Southeast Asia,
South America, the Middle East, Europe, and also popular in the domestic market.
We approach each project with the intent of finding a better way to solve the customers' problems
by listening to their individual needs, and applying what we learn to best solve their specific material handling
Contact us freely if need more detailed information!
