Manual stencil printer FP2636+ Pick and place robot NeoDen4+ Reflow soldering oven T5
Applicable to: electronics R&D prototype, SMT labs, middle batch PCB assembly.
Technical parameter
Screen printer FP2636
| Model | FP2636- frameless type |
| Max. pcb size | 280*380mm |
| Min. pcb size | 10*5mm |
| Max.Screen stencil size | 260*360mm |
| PCB thickness | 0-20mm |
| Positioning pin size | 1mm/1.5mm/2.0mm/2.5mm/3mm (selectable) |
| Positioning mode | outside positioning holes |
| Repeatability | +/-0.01mm |
| Platform height | 190mm |
| Fine adjustment range | Z-axis:+/-15mm |
| X-axis:+/-15mm | |
| Y-axis:+/-15mm | |
| Max. rotation angle | +/-15 angle |
| Machine dimension | 594*382*187mm |
| Packing dimension | 660*470*245mm |
| N.W./G.W. | 12/14kg |
SMD pick and place machine NeoDen4
| Model | NeoDen4 | ||
| Machine style | Single gantry with 4 heads | ||
| Alignment | Stage Vision | ||
| Placement Rate | Vision on | 5,000CPH | |
| Vision off | 10,000CPH(Optimum) | ||
| Feeder Capacity | Tape feeder:48(all 8mm) | ||
| Vibration feeder:5 | |||
| Tray feeder:45 | |||
| Component Range | Smallest Size | 0201 | |
| Largest Size | 32x32mm (Pitch 0.5mm) | ||
| Max Height | 5mm | ||
| Rotation | ±180° | ||
| Placement Accuracy | ±0.02mm | ||
| X-Y Repeatability | ±0.02mm | ||
| Board Dimension(mm) | Maximum | 290 x 1,500mm | |
| Minimum | 290 x 400mm(Option) | ||
| 140 x1,500mm(Option) | |||
| Main Control | GUI | ||
| Electricity Supply | 110V/220V | ||
| Power | 180W | ||
| External Dimensions(mm) | Machine size | 870(L)x680(W)x480(H) | |
| Packing size | 940(L)x740(W)x600(H) | ||
| Weight | Net Weight | 60kgs | |
| Gross weight | 80kgs | ||

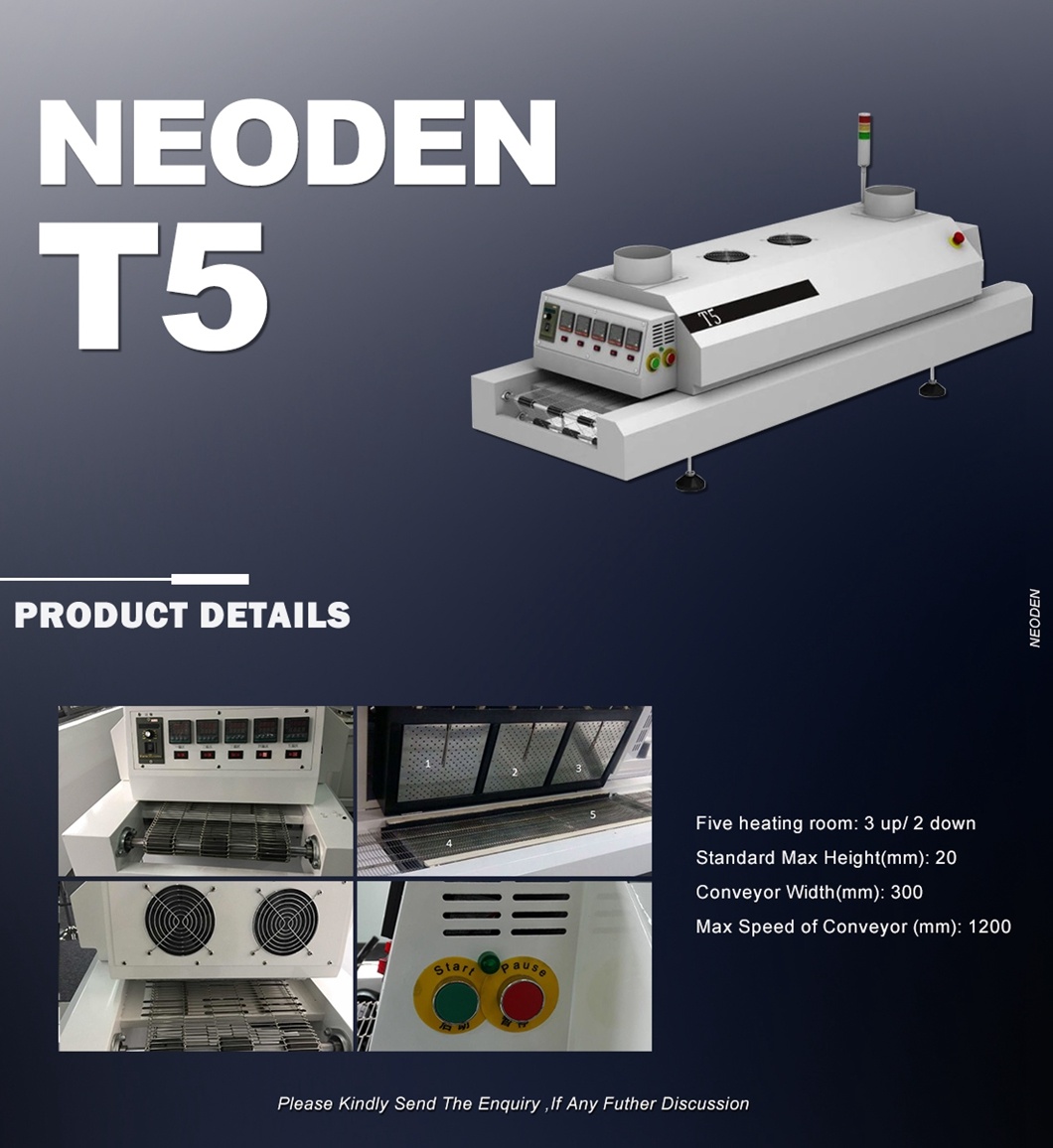

Reflow soldering oven T5:
| Parameters | T8L | T5L | T8(desktop) | T5(desktop) | T5S(desktop) | |
| L*W*H(mm) | 2100x712x1220 | 1800x600x1220 | 2100x712x500 | 1800x600x500 | 1400x555x375 | |
| N.W.(KG) | 230 | 160 | 180 | 130 | 100 | |
| Peak power(KW) | 11.6 | 7.8 | 11.6 | 7.8 | 5.8 | |
| Working power(KW) | 5 | 3.5 | 5 | 3.5 | 2 | |
| Voltage(V) | 380/220 | 380/220 | 380/220 | 380/220 | 380/220 | |
| Conveyor width(mm) | 300 | 300 | 300 | 300 | 300 | |
| Available height(mm) | 25 | 25 | 25 | 25 | 25 | |
| Max.conveyor speed (mm/min) | 1000 | 1000 | 1000 | 1000 | 1000 | |
| Heating area length (mm) | 1210 | 1000 | 1210 | 1000 | 900 | |
| T5 Five zones | First/ Forth:Fast preheating zone Second:Drying zone Third/Fifth:Soldering zone Fourth/Fifth:Bottom-side heating zone (Each zones adapts independent heating/cooling control ways,cooling zone belongs to strong wind refrigerating system.) | |||||
| T8 Eight zones | First/Fifth:Fast preheating zone Second/Third/Sixth/Seventh:Drying zone Forth/Eighth:Soldering zone Fifth/Sixth/Seventh/Eighth:Bottom-side heating zone (Each zones adapts independent heating/cooling control ways,cooling zone belongs to strong wind refrigerating system.) | |||||
Packing and delivery
Lead time: 7 working days.
Packing: fumigation-free wooden case and standard carton for export
Delivery: it's ok for air cargo, exprees and by sea.

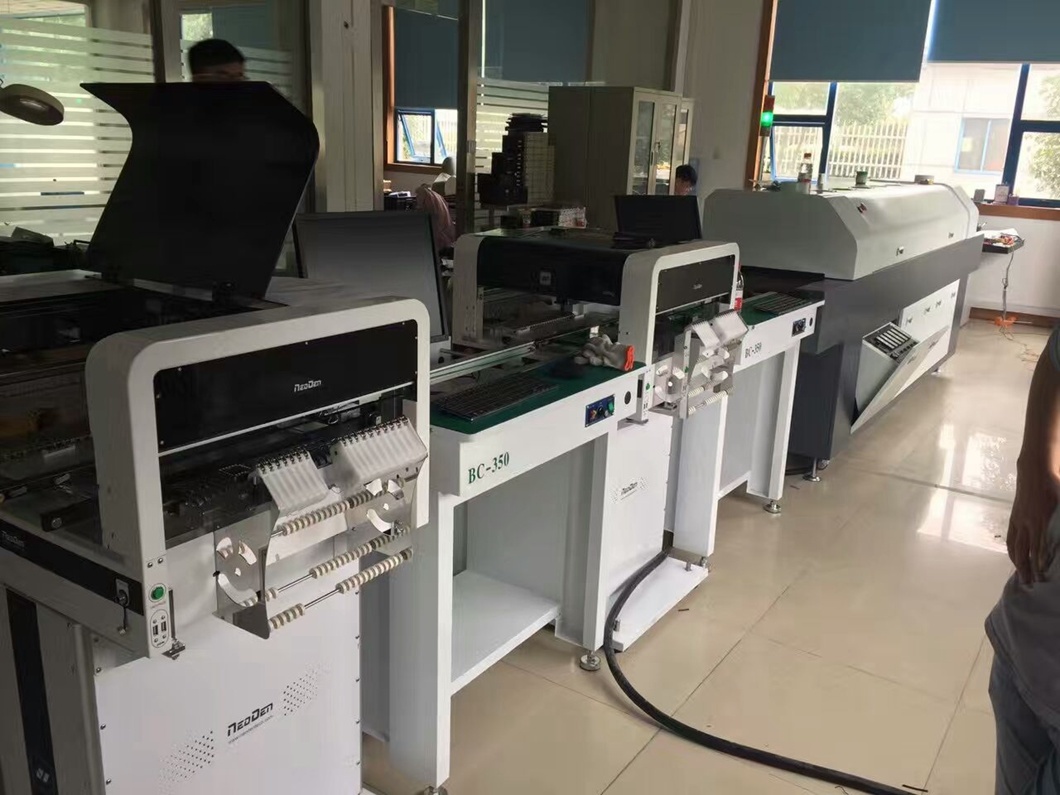

Customers cases
NeoDen provides a full SMT assembly line solutions, including SMT reflow oven, wave soldering machine, pick and place machine, solder paste printer, Reflow oven, PCB loader, PCB unloader, chip mounter, SMT AOI machine, SMT SPI machine, SMT X-Ray machine, SMT assembly line equipment, PCB production Equipment SMT spare parts, etc any kind SMT machines you may need, please contact us for more information.
